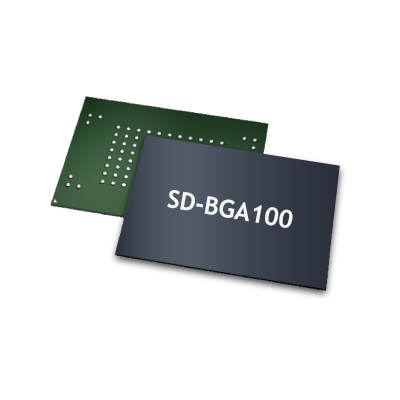

Industrial SD-BGA100 (SDB)
製品の特徴
オンライン相談
● Industrial Grade SD-BGA100
● JEDEC MO-304 Standard Compatible
● SIP Module Solution
● Longer endurance Life time
● Stronger Data Retention
● Support Wear Leveling
● Support S.M.A.R.T. Function
● Management of sudden power-fails
● Water-proof, Dust-proof
● Support Non-CPRM SD6.10
● Support Windows/Linux/Mac/Power PC Smart SDK
● JEDEC MO-304 Standard Compatible
● SIP Module Solution
● Longer endurance Life time
● Stronger Data Retention
● Support Wear Leveling
● Support S.M.A.R.T. Function
● Management of sudden power-fails
● Water-proof, Dust-proof
● Support Non-CPRM SD6.10
● Support Windows/Linux/Mac/Power PC Smart SDK
オンライン相談
関連技術
| Interface | SD2.0/SD3.0 |
|---|---|
| Flash Type | Wide-temp. SLC , MLC , sMLC Flash |
| Capacity | SLC: 512MB~16GB MLC: 8GB~64GB sMLC: 4GB~32GB |
| Max. Performance | Read:90MB/s, Write:70MB/s |
| Operating Voltage | 2.7V~3.6V |
| Power Consumption | 0.55W |
| Operating Temp. | -40°C ~ + 85°C (Industrial Grade) |
| Storage Temp. | -50°C ~ + 95°C (Industrial Grade) |
| Humidity | 10%~95% |
| Shock | Duration: 0.5ms, 1500G,3 axes (Military Grade) |
| Vibration | 30G Peak, 10Hz to 2K Hz, 3 axes (Military Grade) |
| MTBF | 2,000,000 hrs |
| Dimensions | 18mm x 14mm x 1.23 mm |
